| Electrical Data |
|
| Model | AOK-75WiHM |
| Power(W) | 75 |
| Input voltage | 100-277VAC (For North America), 220-240VAC (For Europe), 50/60Hz |
| Control option | Temporary unavailable |
| Operating temperature | -40°C to 45°C (-40 °F to 113 °F) |
| Driver | Included(Lifud) |
| Glow-wire test | Temperature 650°C, duration 5s |
| Protection class | Safety class I |
| Photometric Data |
|
| Efficacy(LM/W) | 160 LM/W |
| Luminous flux (lm, tolerance ±10%) | 12000 LM |
| CCT | 4000K, 5000K |
| CRI | Ra70 |
| Beam angle | 40*80° / 90° / 110° |
| LED model | LUMILEDS 2835 |
| Working current of single LED | 44mA |
| Lens and cover | Polycarbonate (Better impact resistance than glass) |
| Lifespan | L90B50 30000 h, L80B50 40000 h |
| Mechanical Data |
|
| IP | IP65 |
| IK | IK09 |
| Housing/Materials | Aluminum |
| Surface treatment | Anodic oxidation |
| Painting | Aluminum and white |
| Cable | Pre-wired with a 30 cm cable (Other lengths on request) |
| Others |
|
| Mounting | Hang mount |
| Warranty | 5 years |
| Certification | ROHS/CE |
| Product size | 36.02*5.04*2.24 inches / 915*128*57mm |
| Net weight | 5.29lbs / 2.4kg |
| Carton size(2pcs in each) | 37.40*12.20*3.94 inches / 950*310*100mm |
| Gross weight | 6.61lbs / 3.0kg |
| Application field | Factory, warehouse, supermarket and other commercial indoor area application
|

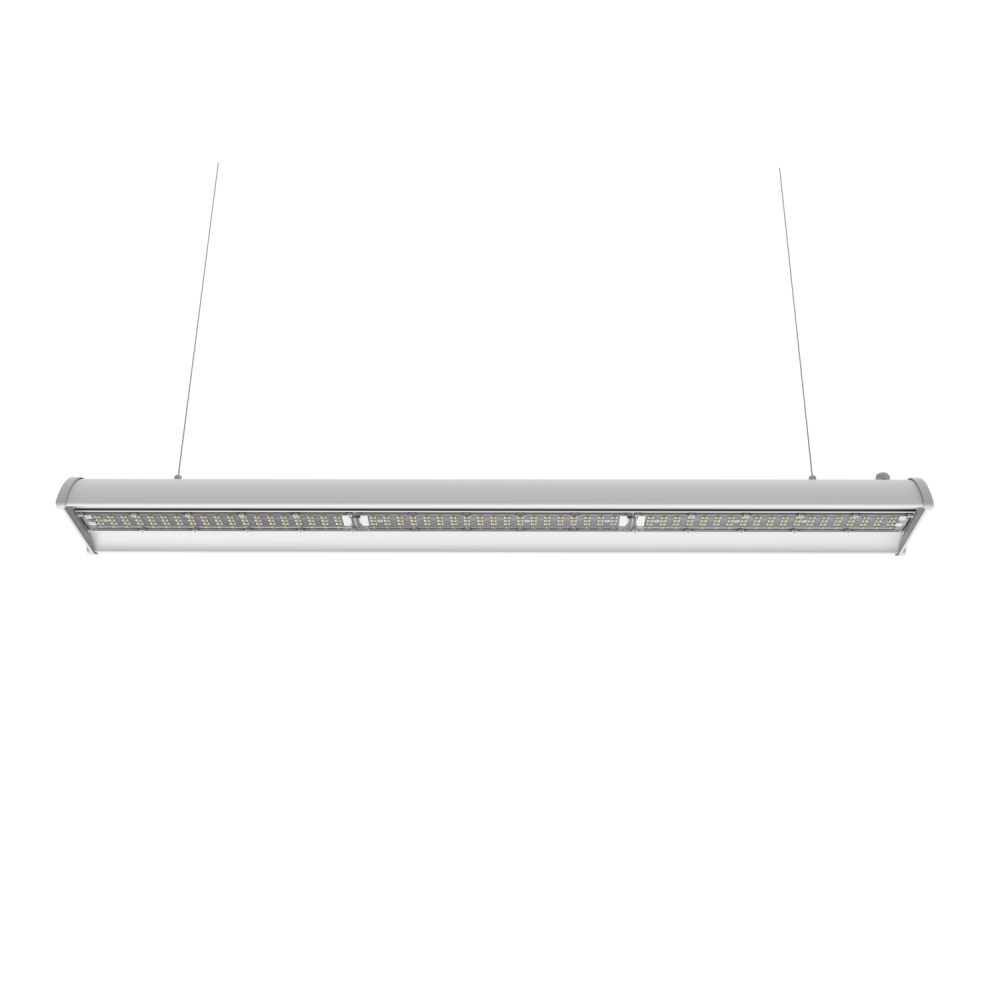

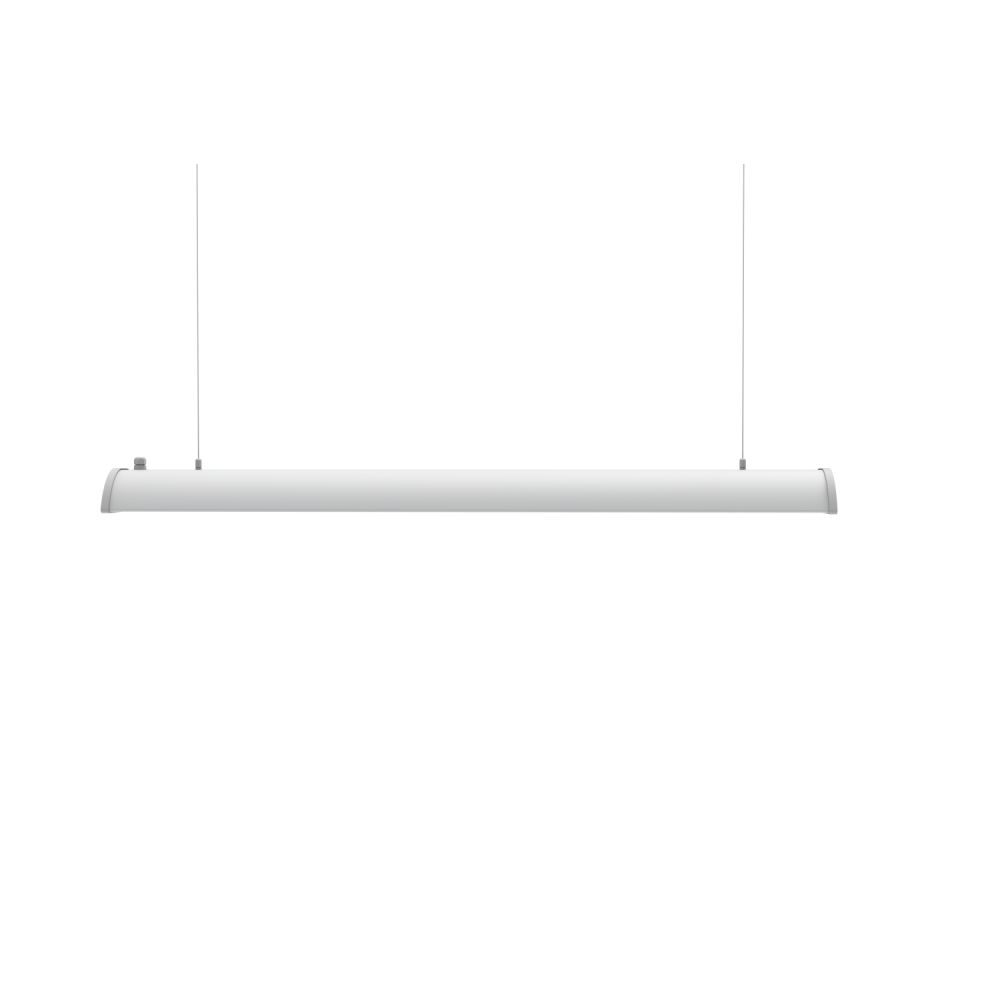

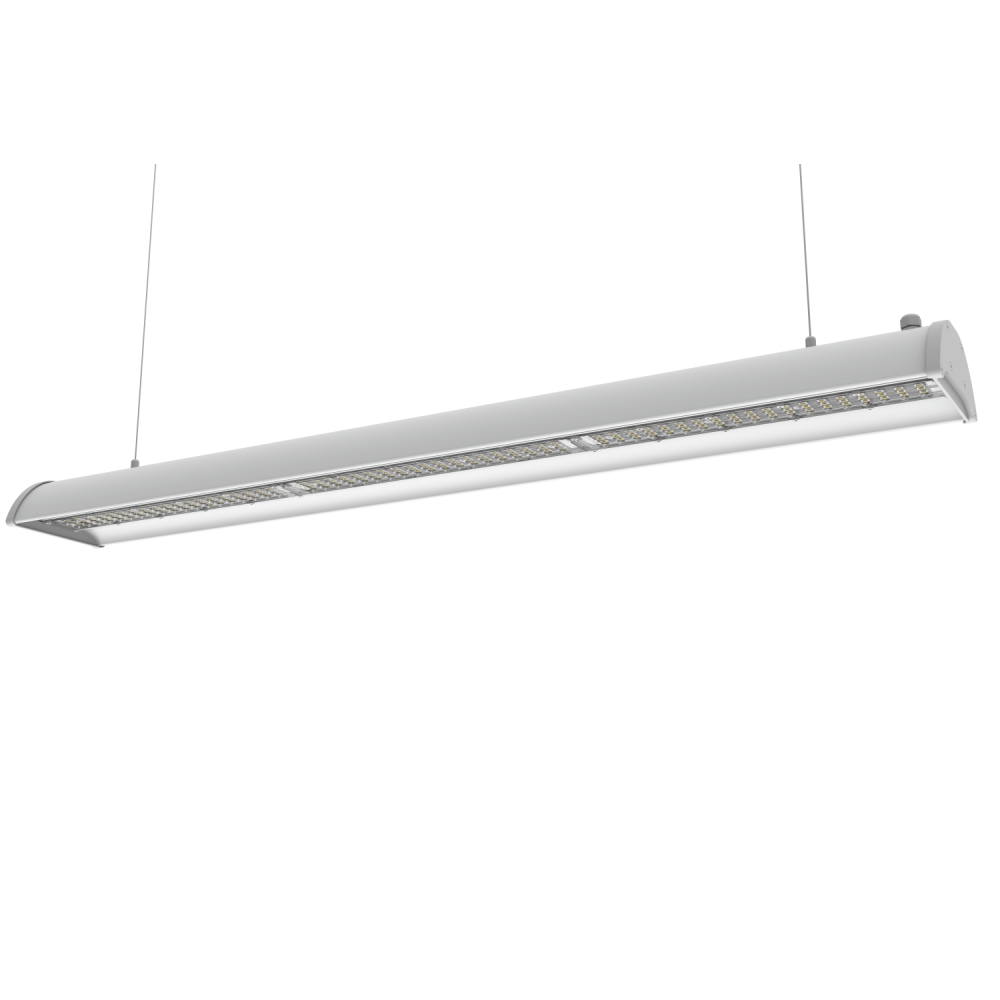

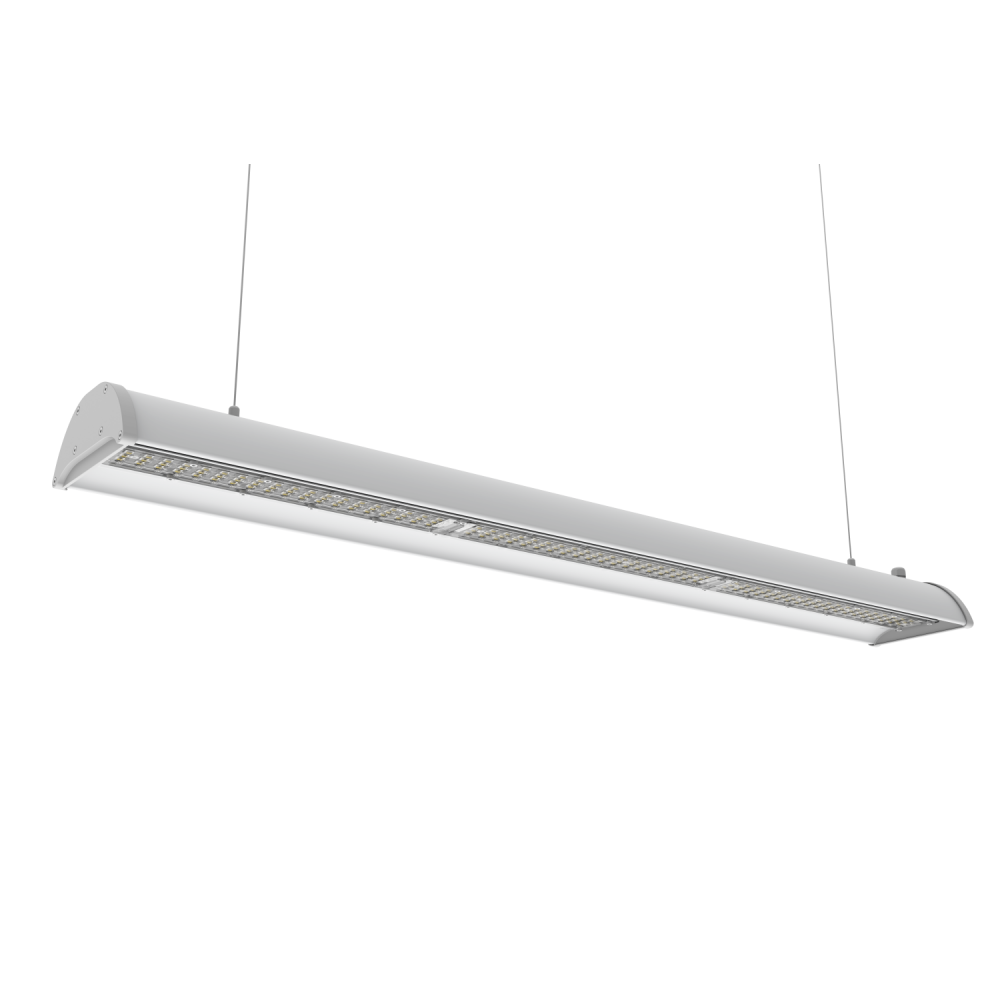

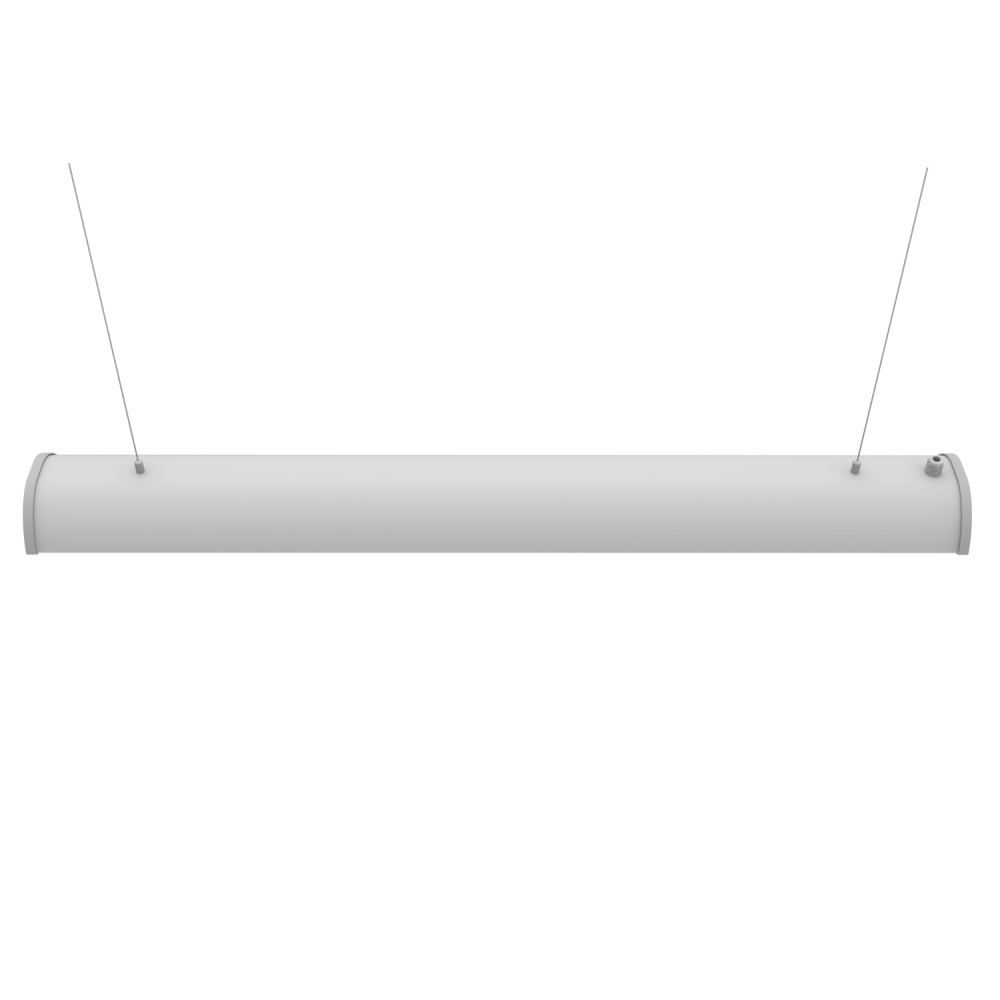

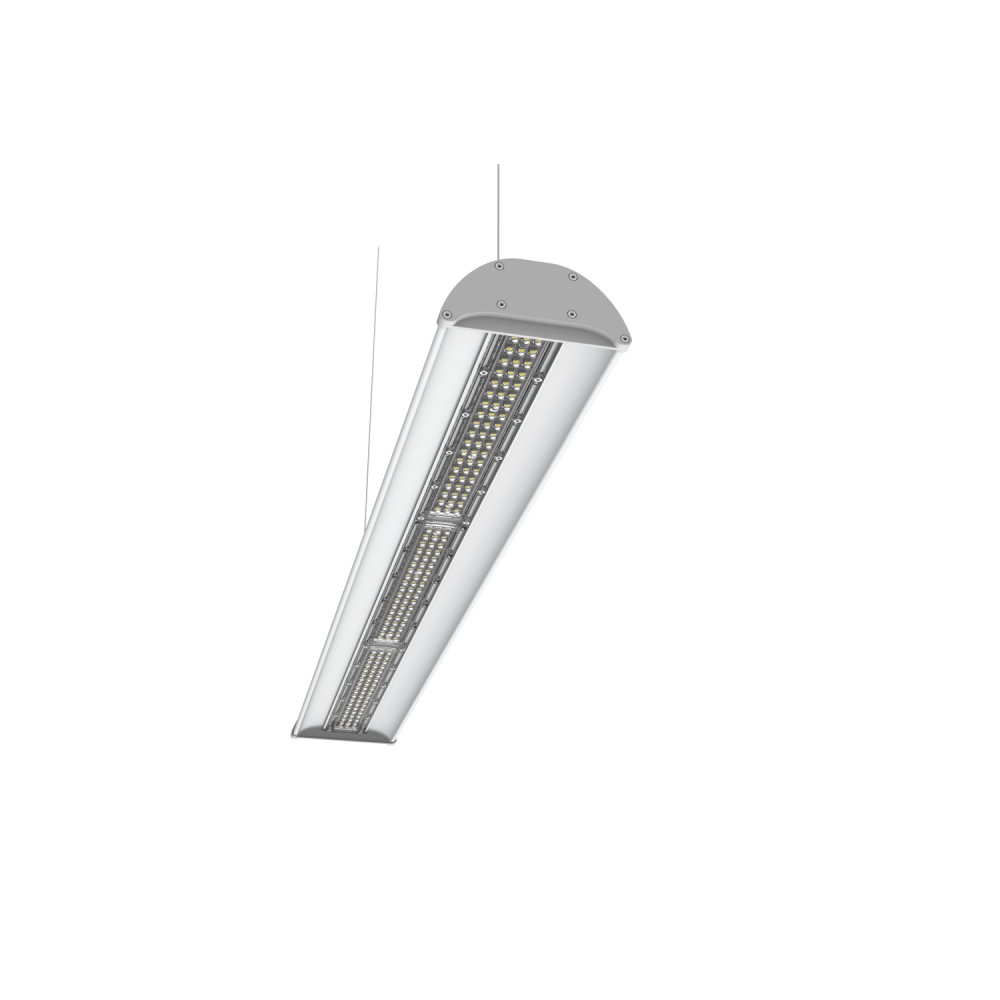

PRODUCT OVERVIEW
• IHM LED Linear High Bay Light is an efficient LED solution that efficiently illuminates work areas, creating a brighter and better warehouse, retail, or manufacturing environment. With its three optical designs and energy efficiency, this easy-to-install and low-maintenance lighting solution is suitable for a variety of applications.
FEATURES
• System efficacy up to 160LM/W;
• Three optical options (40*80° / 90° / 110°) with CRI70;
• Linear design with flexible installation;
BENEFITS
• High energy savings >60% comparing to traditional tube light;
• Fit for different applications with comfort lighting experience;
• Direct replacement of T5 Highbay;
RECOMMENDED USE
• Warehouse, Distribution center, Factory;
• Indoor sport hall;
• Other commercial indoor area application;
WARRANTY
5 Year Limited Warranty. Please consult with our sales for detailed agreement.

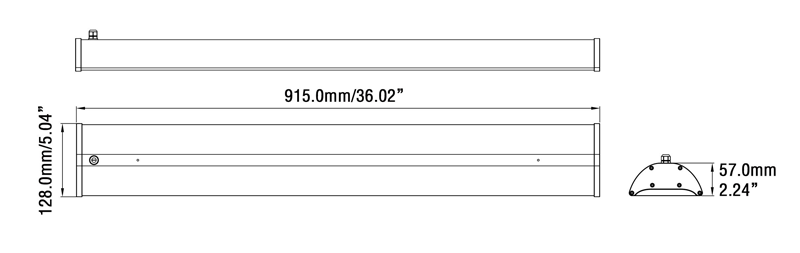

DIMENSION
CERTIFICATION/LISTING
RoHS/CE Listed
