PRODUCT OVERVIEW

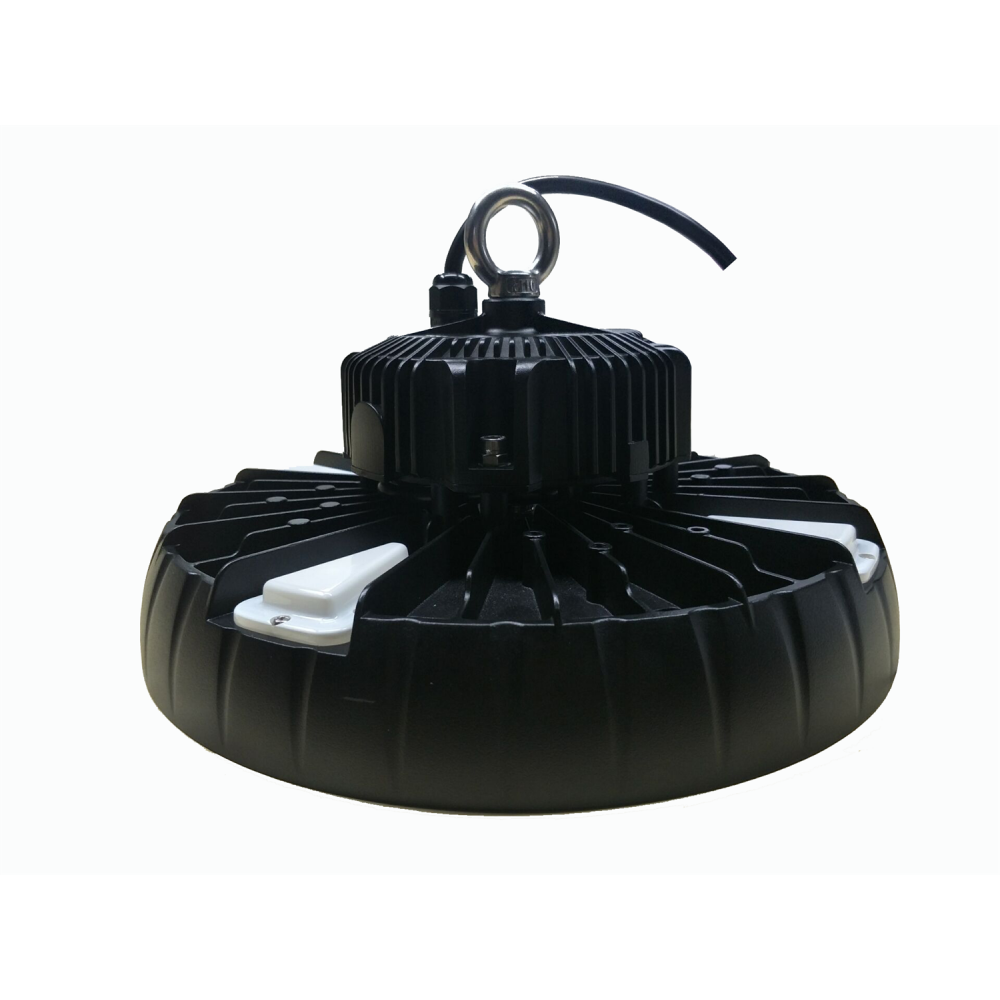

The oH series is designed for Indoor and Industrial lighting , a superior high output, high efficiency LED High Bay light, featuring a unique optical design that virtually eliminates glare with minimal impact on performance. It is available in a variety of distributions for lighting applications such as gyms, industrial, multi-purpose rooms in schools, churches and retails etc.
It features die cast aluminum housing, light engine is thermally isolated from driver components. UV stabilized polyester powder paint finish. Symmetrical for easy one-for -one replacement of existing high bays. Motion sensor and Wireless Control optional.
ELECTRICAL/LED

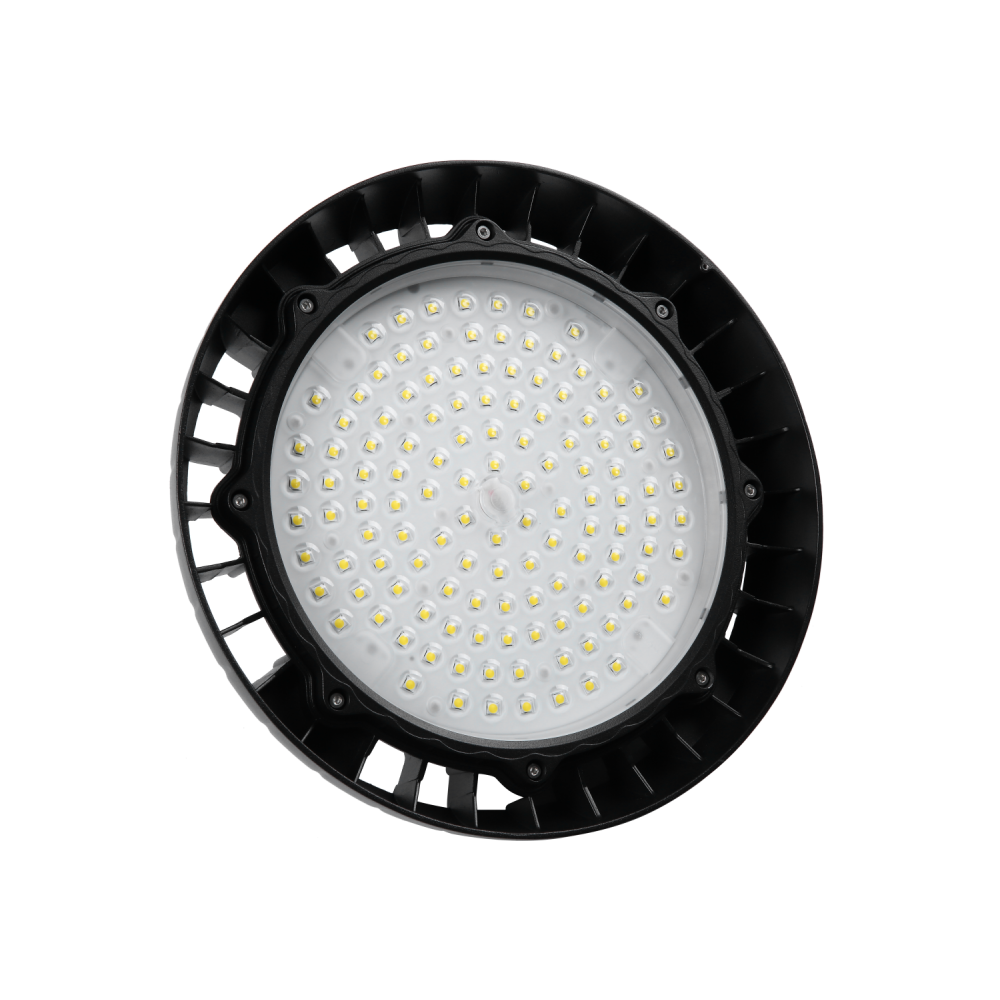

•Precision engineered individual lenses made of optical grade Mitsubishi polycarbonate for maximum light intensity.
•Three distributions to maximize performance:60°, 90°, 120°
•-40℃~50℃ operating temp range
•100-277V operation 50/60HZ standard, 200-480V 50/60HZ optional
•1-10V dimming driver standard, DALI, ZIGBEE dimming optional
•LPW (lumens/watt): up to 150lm/w and 165lm/w optional
•3000K, 4000K, 5000K, 5700K, 6500K CCT
•Minimum CRI of 70, 80, and 90 optional
CONSTRUCTION
•Housing: Die cast aluminum
•Light engine is thermally isolated from driver components
•UV stabilized polyester powder paint finish
•Installation: Fixture hook come as standard, pendant mount from 3/4” threaded conduit optional
•Symmetrical for easy one-for -one replacement of existing high bays
•Motion sensor and Wireless Control optional

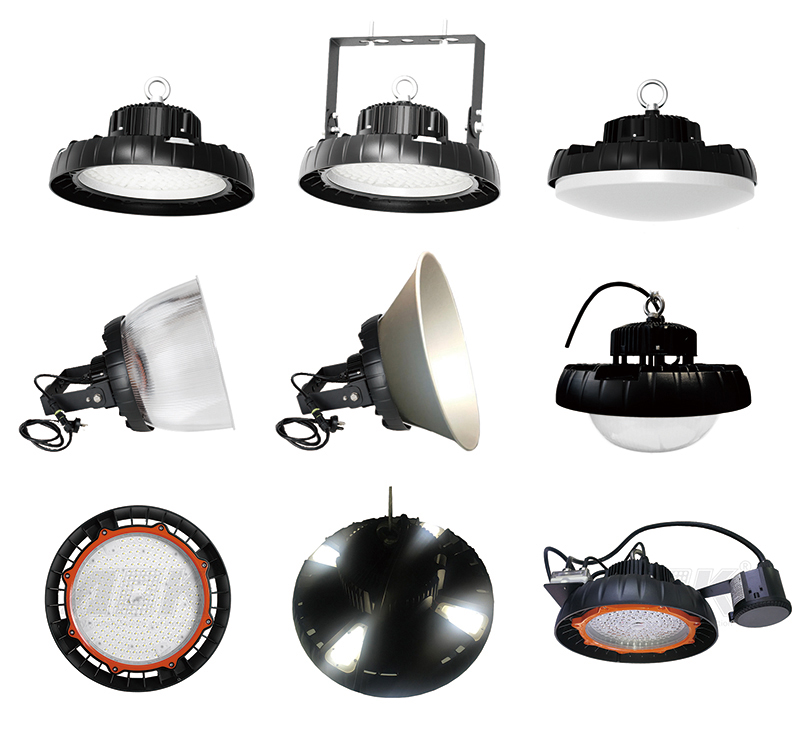

MOUNTING/ACCESSORIES
Hook/Yoke/Chain mounts
RECOMMENDED USE
● Manufacturing facilities
● Warehouses and storage areas
● Sports and recreational facilities
● Convention centers and exhibit halls
● Big-box stores and shopping malls
● Passenger terminals
● Airport hangars
● Classified areas
● Repair shops & garage
● Hose down areas
WARRANTY
5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.

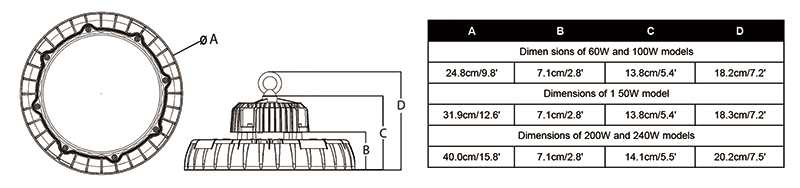

DIMENSION
CERTIFICATION/LISTING
CE, RoHS, FCC, UL, DLC Listed
