Electrical Specifications | |||||
Model | AOK-FLW20 | AOK-FLW35 | AOK-FLW50 | AOK-FLW60 | AOK-FLW70 |
Power(W) | 20 | 35 | 50 | 60 | 70 |
Input voltage | 100-277VAC | ||||
PF | ≥0.90 | ≥0.90 | ≥0.90 | ≥0.90 | ≥0.95 |
Driver Efficiency | ≥86% | ≥86% | ≥86% | ≥88% | ≥89% |
Maximum Current | AC0.23 A | AC0.34 A | AC0.56 A | AC0.67 A | AC0.78 A |
Control option | Driver includes wiring for 0-10V dimming systems. Dim as low as 10%. | ||||
Operating temperature | -40°C to 50°C (-40 °F to 122 °F) | ||||
Surge Protection | 4KV SPD optional | ||||
Photometric Specifications | |||||
Efficacy (LM/W, ±3% tolerance) | 140 | 145 | 140 | 140 | 140 |
Luminous flux(LM)@CRI 70Ra, 4000K | 2500 | 5000 | 7000 | 8400 | 9800 |
CCT | 3000K, 4000K, 5000K | ||||
CRI | 70Ra, 80Ra | ||||
LED model | 2835 | ||||
Lens | Polycarbonate | ||||
Beam angle | 7H*7V (130°*130°) | ||||
Mechanical Specifications | |||||
IP/IK | IP66/IK09, according to standard EN 60529 and EN 62262 | ||||
PRODUCT OVERVIEW：

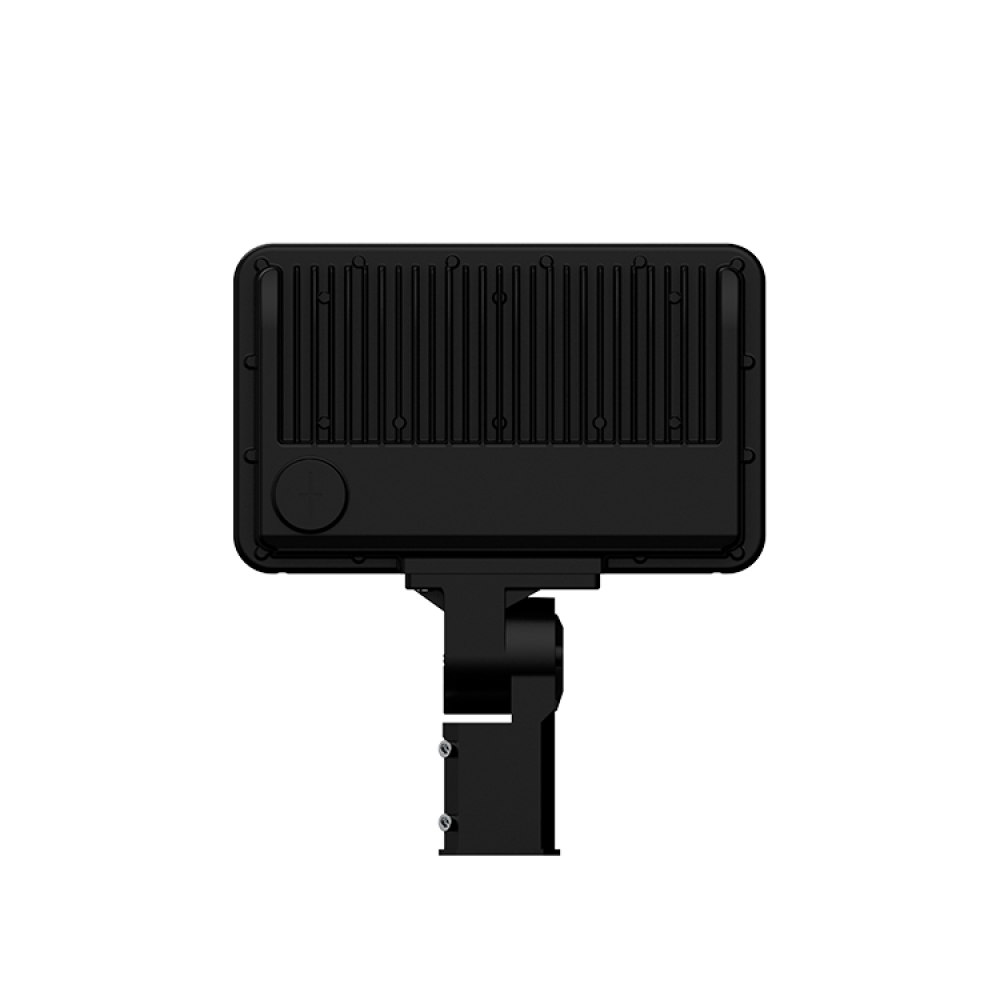

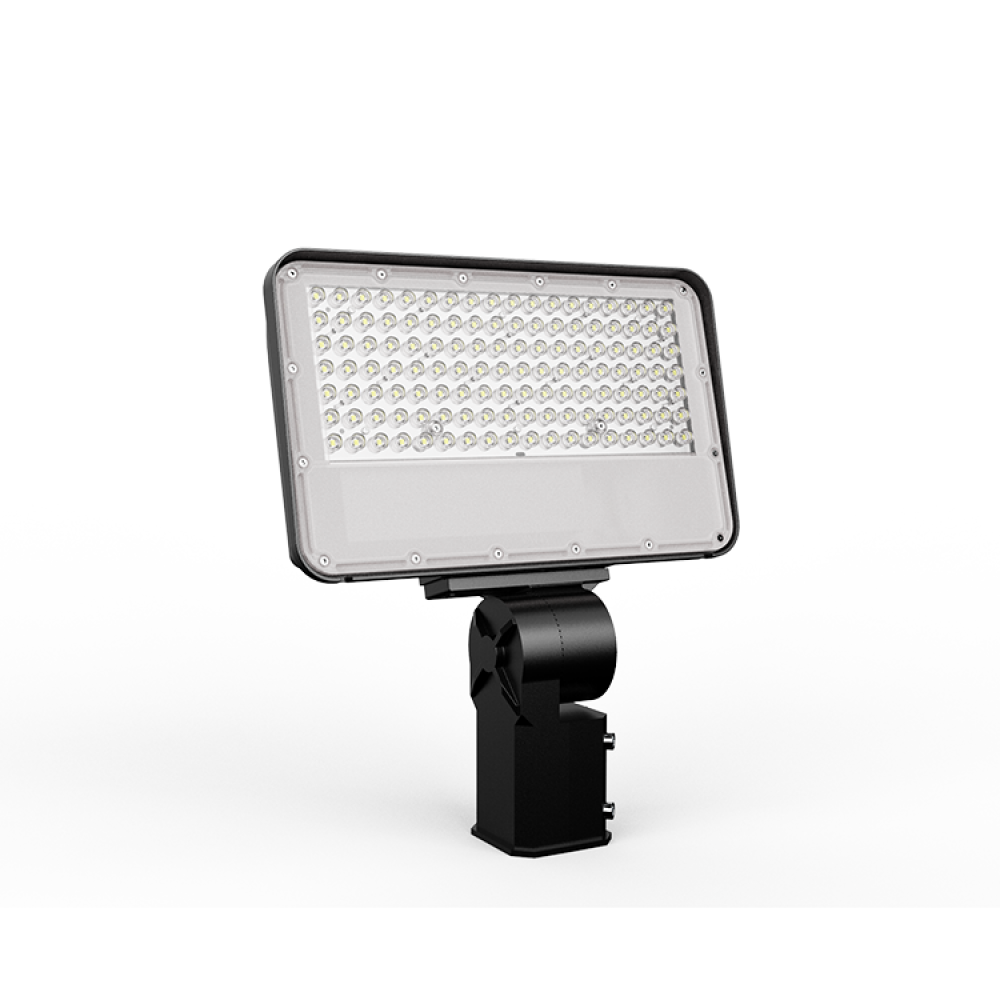

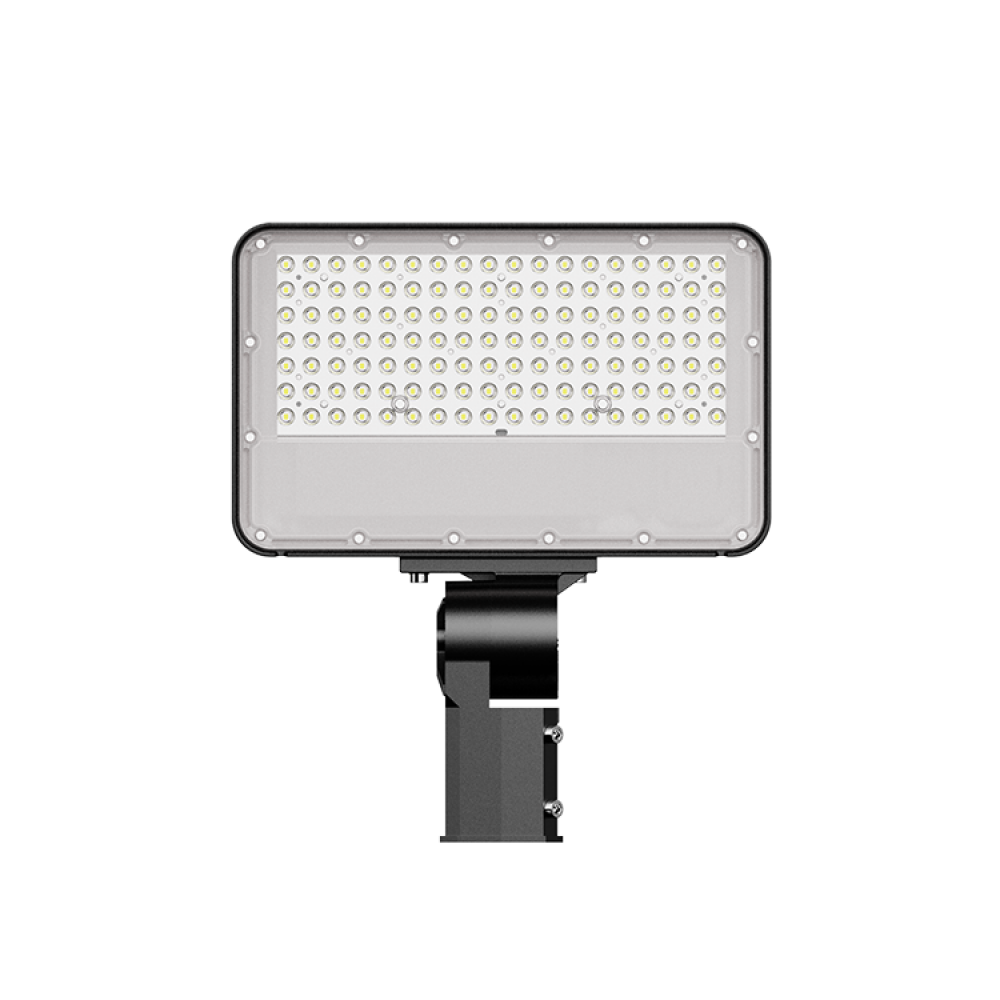

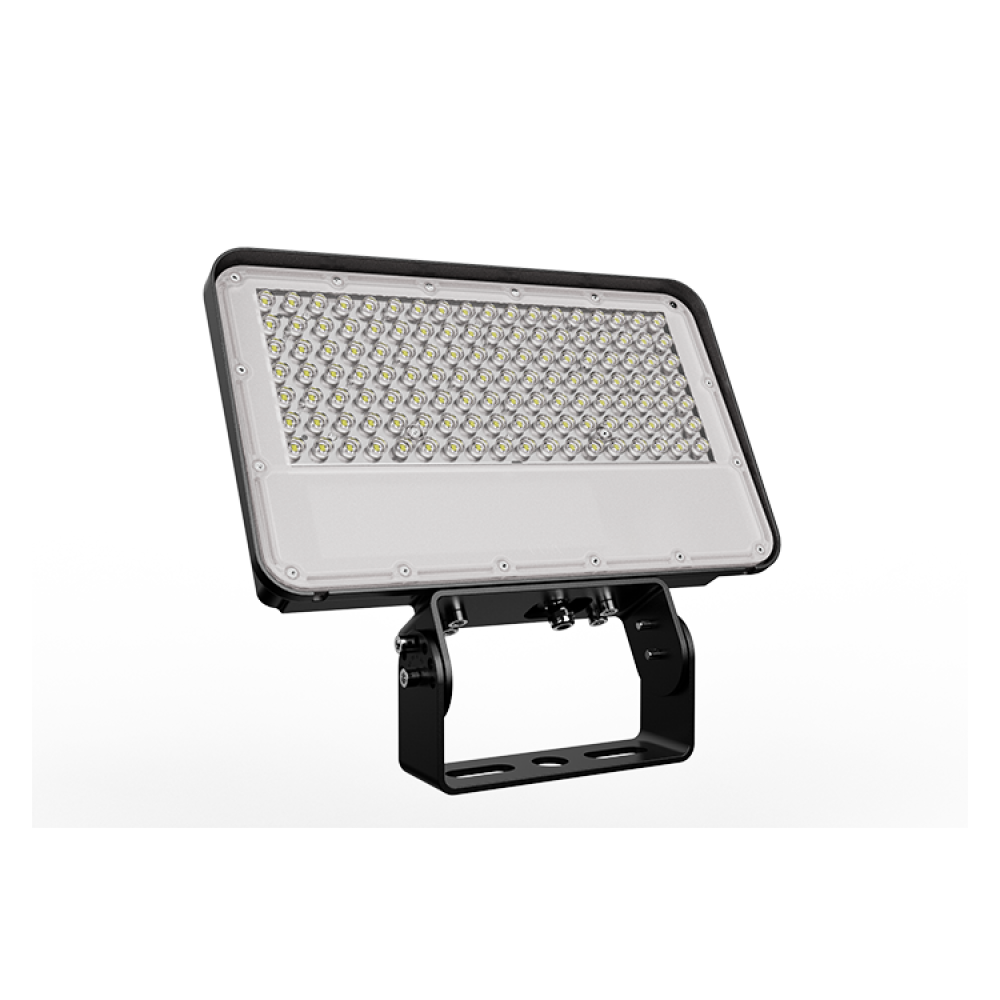

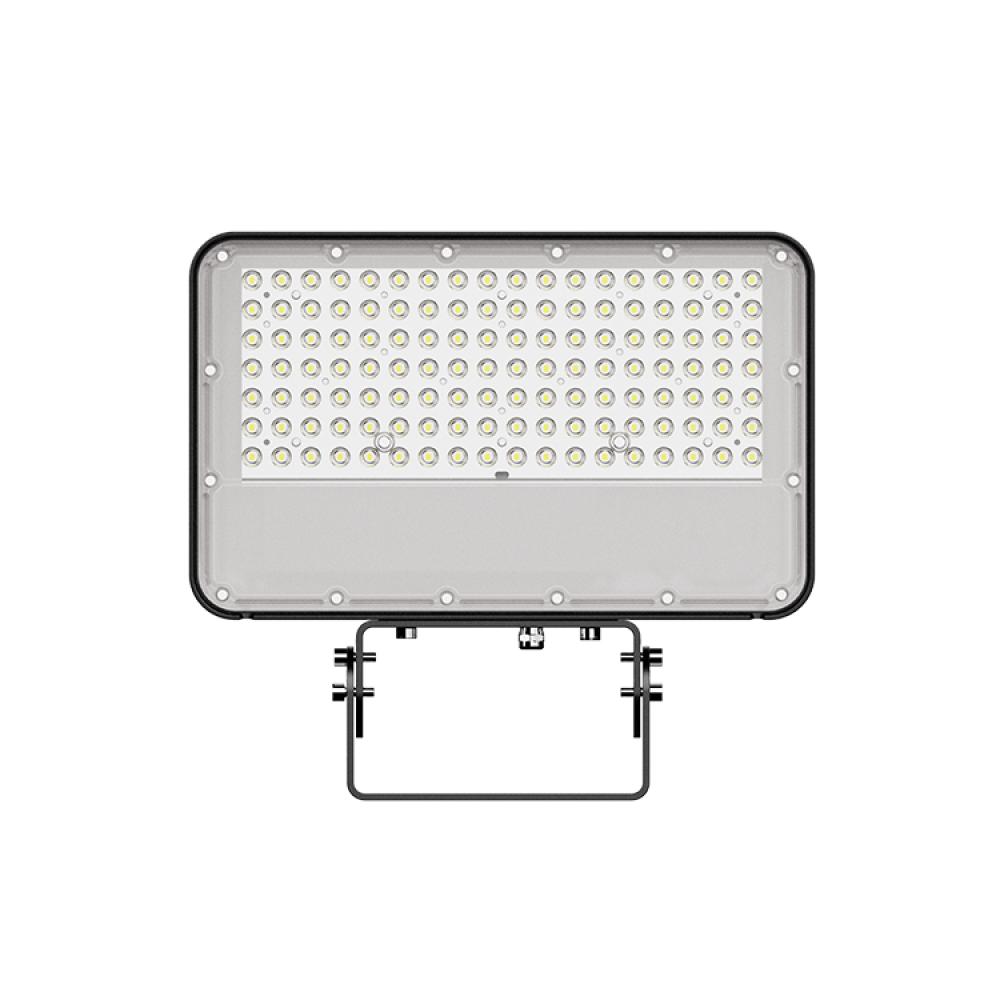

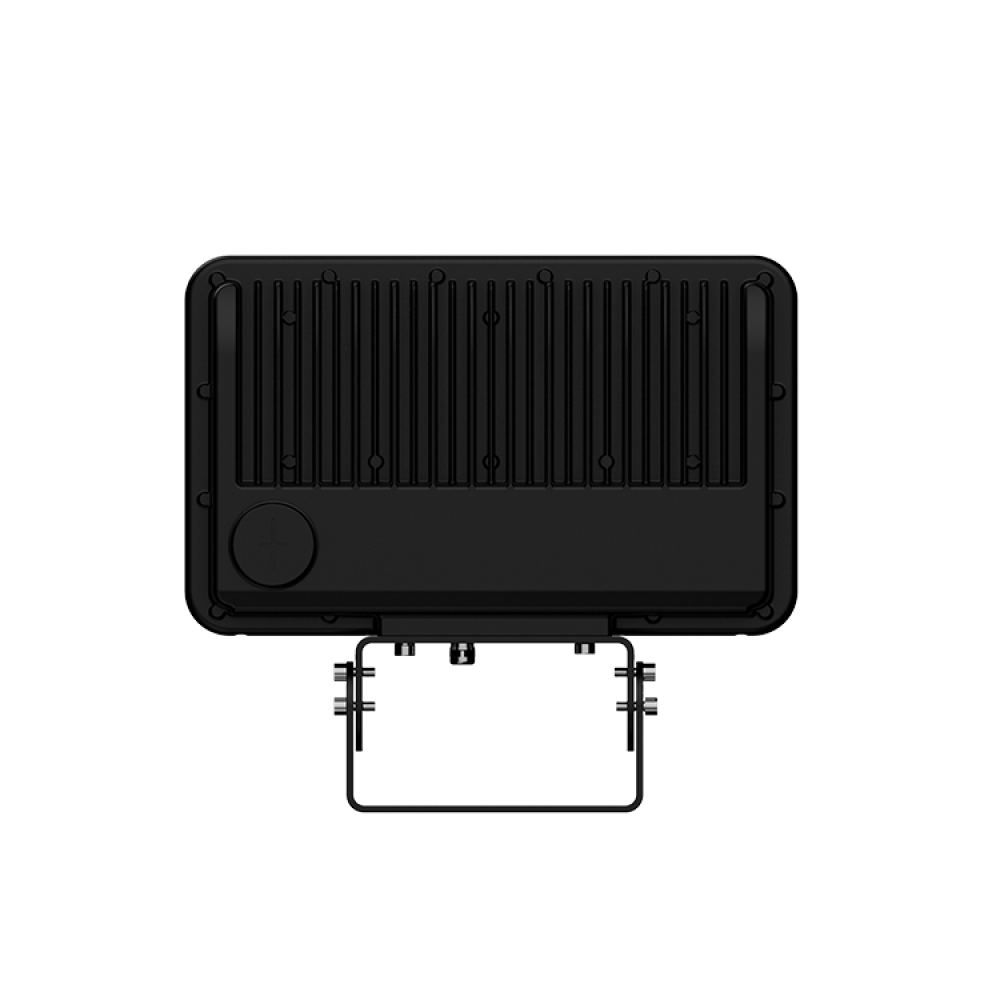

Wombat (FLW) LED Flood Light is an efficient LED solution that efficiently illuminates fields, creating brighter and better lighting for community large areas, tall or wide buildings, and recreational parks. It's also suitable for outdoor wet locations, for ground mounting as well. With its low energy consumption and high efficiency, this easy-to-install and low-maintenance lighting solution is an ideal choice for industrial and commercial applications.
CONSTRUCTION：
• System efficacy up to 150 LM/W;
• Adjustable CCT & Power;
• Sturdy die-cast aluminum housing, black powder coating finish, custom color on request;
• Integrated lens, energy-saving and high efficiency, no glare;
• Optional distribution: 7H*7V (130°x130°), custom optics on request;
• A variety of mounting options: Knuckle/Trunnion/Slipfitter/Yoke;
OPTICAL/ELECTRIC：
• High energy savings >60% compared to traditional HPS/MHLlight;
• Flexible solution reduces SKUs, increases turns, and drives profitability.
RECOMMENDED USE：
• Backyards
• Recreational parks
• Buildings and walls
• Ground areas and other wet locations
WARRANTY：
5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
CERTIFICATION/LISTING：
• UL, DLC5.1, FCC listed, suitable for wet locations.
